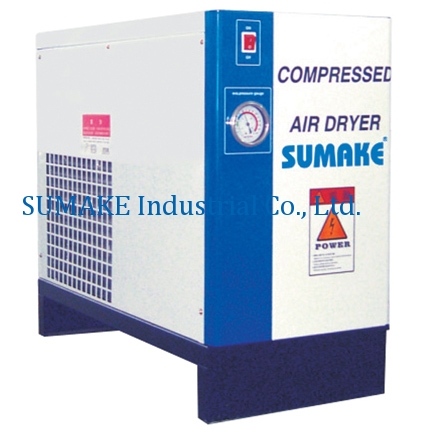

AD-10HA

Model : AD-10HA

Q'ty :

Add To Inquiry

Air Dryer for 7.5HP & 10HP air compressors

Specifications:

  • Made in Taiwan

Features:

  • Installing a Pre-cooler first compressed air enter there for cool compressed air before it enter the evaporator, (HA Series only has).
  • Non-fouling heat exchanger maintain perfmace heat-exchanger efficiency and low pressure drop fpr the life of the unit; are fully insulated topreserve cooling effectiveness.
  • High quality refrigeration controls produce consistent cooling temperatures over a wide range of flow and operating conditions.
  • eparator maintains high efficency frum no flow to full flow.
  • Durable condensate drain automatically collects and discharges condensate from the system.
  • All electrcal controls and safety devices to start and protect compressor and fan motor.
  • Refrigeration systemis builtunder strict quality control procedures by experienced craftsmen and includes all. The filter and over loads necessary to ensure long trouble free service.
Flow Rate: 1.3Nm3/min (46SCFM)
Inlet air tem.: 65℃(working)
Environment Tem.: 35℃(working)
Pressure Dew point: 2-10℃
Working pressure: 7kgf/cm2
Refrigerant: R134a
Power supply: single phase 220V
Compressor motor: 1/3HP
In/Outlet Conn: 3/4"
Physical Dimension (mm): 600(H) x 350(W) x 640(D)
Net Weight: 45kg
