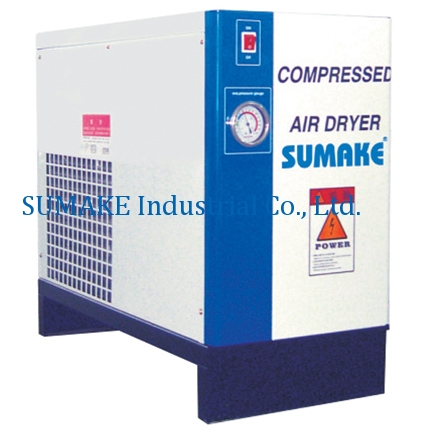

AD-15HA
Air Dryer for 15HP air compressors
Specifications:
- Made in Taiwan
Features:
- Installing a Pre-cooler first compressed air enter there for cool compressed air before it enter the evaporator, (HA Series only has).
- Non-fouling heat exchanger maintain perfmace heat-exchanger efficiency and low pressure drop fpr the life of the unit; are fully insulated topreserve cooling effectiveness.
- High quality refrigeration controls produce consistent cooling temperatures over a wide range of flow and operating conditions.
- eparator maintains high efficency frum no flow to full flow.
- Durable condensate drain automatically collects and discharges condensate from the system.
- All electrcal controls and safety devices to start and protect compressor and fan motor.
- Refrigeration systemis builtunder strict quality control procedures by experienced craftsmen and includes all. The filter and over loads necessary to ensure long trouble free service.
Flow Rate: 1.8Nm3/min (64SCFM) |
Inlet air tem.: 65℃(working) |
Environment Tem.: 35℃(working) |
Pressure Dew point: 2-10℃ |
Working pressure: 7kgf/cm2 |
Refrigerant: R134a |
Power supply: single phase 220V |
Compressor motor: 1/2HP |
In/Outlet Conn: 3/4" |
Physical Dimension (mm): 650(H) x 350(W) x 770(D) |
Net Weight: 50kg |
