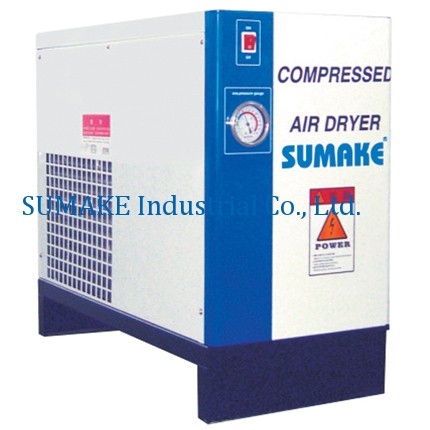

Model : AD-30HA
Air Dryer for 30HP air compressors
- Made in Taiwan
- Installing a Pre-cooler first compressed air enter there for cool compressed air before it enter the evaporator, (HA Series only has).
- Non-fouling heat exchanger maintain perfmace heat-exchanger efficiency and low pressure drop fpr the life of the unit; are fully insulated topreserve cooling effectiveness.
- High quality refrigeration controls produce consistent cooling temperatures over a wide range of flow and operating conditions.
- eparator maintains high efficency frum no flow to full flow.
- Durable condensate drain automatically collects and discharges condensate from the system.
- All electrcal controls and safety devices to start and protect compressor and fan motor.
- Refrigeration systemis builtunder strict quality control procedures by experienced craftsmen and includes all. The filter and over loads necessary to ensure long trouble free service.
|Flow Rate: 4.2Nm3/min (148SCFM)|
|Inlet air tem.: 65℃(working)|
|Environment Tem.: 35℃(working)|
|Pressure Dew point: 2-10℃|
|Working pressure: 7kgf/cm2|
|Power supply: single phase 220V|
|Compressor motor: 1HP|
|In/Outlet Conn: 1-1/2"|
|Physical Dimension (mm): 750(H) x 400(W) x 920(D)|
|Net Weight: 95kg|
